APPLICATIONS:

  • DI Water Heating
  • Vaporization of Cryogenic Gases & LNG
  • Two-Part Urethane and Foam Systems
  • Anodizing & Plating Pre-Wash Heating
  • Dye Heating for Clothing Manufacturing
  • Air Heating for Coating Drying Applications

FEATURES & BENEFITS:

  • Fluid Path has No Contact with Heating Elements
  • Heated Media is Isolated in Seamless 316 Stainless Steel Tubes
  • Allows for Safe Heating of Explosive Gases & Flammable Liquids
  • Excellent Performance in High-Pressure Applications
  • Suitable for Use with Sterile and Zero Contaminant Processes
  • Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.)
  • Small Size Enables Easy Integration into Larger Machines
  • Self-Draining Flow-Tubes, and Long-Life Heating Elements

Specifications:

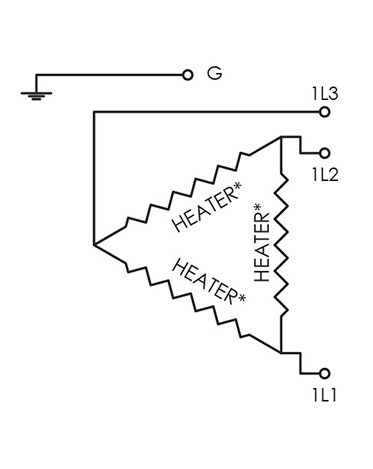

Power:

  •     1 kW Total to 6 kW Total
  •     Voltage Range: 120 - 575 V
  •     Max Line Current: 25 A per circuit


Tubing:

  •     .50” OD (1/2") (12.7 mm)
  •     .065” Wall (1.7 mm)
  •     Overall Process Tube Length: 150” (3810 mm)
  •     316L Stainless Steel (standard)
  •     Inconel (optional upgrade)
  •     Passivated or Electro-Polished (optional upgrades)
  •     Max Pressure: 4300 psi (295 bar)

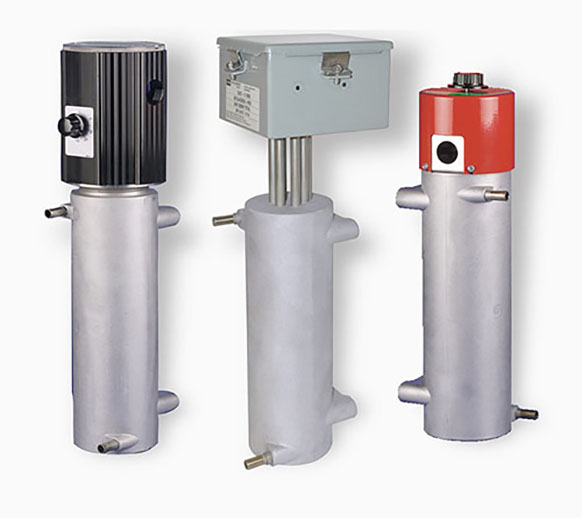

Enclosures:

  •     NEMA 1 (general-purpose/dust-proof)*
  •     NEMA 4 (moisture-resistant)*
  •     NEMA 7 (explosion-proof)
  •     Available with Standard or Standoff Design


Max Working Temperatures:

  •     NEMA 1 (dust-proof/general-purpose): 482°F (250°C)
  •     with standoff: 662°F (350°C)
  •     with t-stat (w/ or w/o standoff: 250°F (121°C)
  •     NEMA 4 (moisture-resistant): 350°F (175°C)
  •     with standoff: 662°F (350°C)
  •     NEMA 7 (explosion-proof): 482°F (250°C)
  •     Published temperatures are for housing at 12 o’clock position;
  •     Higher temps may be possible at 6 o’clock position. See factory for details.


Sensors:

  •     K or J Type Thermocouples Standard
  •     Snap-Action High-Limit Thermostat
  •     Process and High-Limit Thermocouples


Available Accessories:

  •     Insulating Jackets
  •     Compression Fittings
